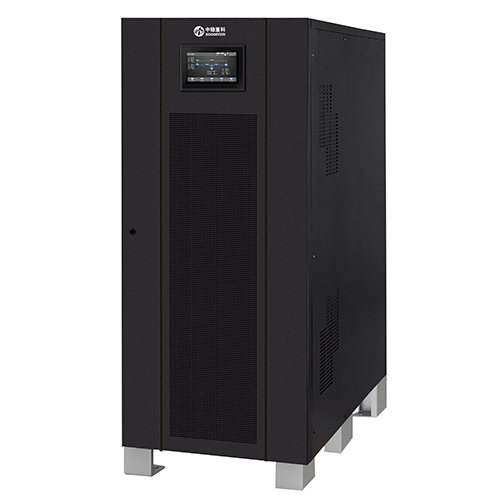

内建隔离变压器的在线式不断电系统
内建隔离变压器,GE系列将消除共模噪声,为关键设备提供可靠的隔离电源。
主要特点
●真正的双转换在线式不断电系统
●DSP技术确保高效能
●内置隔立变压器设计
●工业级设计应用于各种恶劣条件
●智能电池管理,延长电池寿命
●独立风道设计可持续运行在恶劣环境下
●电池节数可调
●双输入选择
●可最多并机4台运作
●多样化的通讯接口
●可选7触碰式彩色LCD屏幕
●支持输入错相整流与无N线输入
技术规格书
MODEL | GE SS 10K | GE SS 15K | GE SS 20K | GE SS 30K | GE SS 40K | GE SS 60K | |
容量 | 10 KVA / 8 KW | 15 KVA / 12 KW | 20KVA/16KW | 30 KVA / 24 KW | 40 KVA / 32 KW | 60 KVA / 48 KW | |
输入 | |||||||
额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | ||||||
可接受的电压范围 | 165VAC ~ 280VAC (Ph-N); 285VAC ~ 485VAC (Ph-Ph) | ||||||
频率 | 50 Hz/60 Hz ± 10% | ||||||
逆变器 | |||||||
可受理 | 功率因数 | 0.6~1 (inductive or capacitive) | |||||
可受理 | 波峰因数 | 3:1 | |||||
可受理 | 超载 | 110% ~ 150% 10 min ~ 60 sec; 150% ~ 160% 60 sec~ 200ms; >160% 200ms | |||||
限流 | High overload, short-circuit: RMS Voltage Limit; High Crest-Factor current: Peak Voltage Limit | ||||||
动态恢复时间 | 3 cycles at 90 % of the static value | ||||||
频率 | 50/60 Hz synchronised ±1 %; With mains absent ±0.1 Hz | ||||||
不平衡输出电压@ 100%不平衡负载 | <1% | ||||||
最大同步速度 | ± 1Hz/s | ||||||
额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | ||||||
相位 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | ||||||
精确 | Stationary: ±1%; Transitory: ±5% (load variations 100-0-100%) | ||||||
总谐波失真(THDv) | <2% (Linear Load); <5% (Non-linear Load) | ||||||
波形 | Pure Sine Wave | ||||||
静态旁路 | |||||||
激活标准 | Microprocessor control | ||||||
允许过载 | 0% ~ 150% continuous working; 150% ~ 180% 60 min~5 min; >180% 5 min | ||||||
频率 | 50 Hz/60 Hz ± 10% | ||||||
再转移 | Automatic after alarm clear | ||||||
转移时间 | Zero | ||||||
转移到旁路 | Immediate, for overloads above 160% | ||||||
类型 | Solid state | ||||||
电压 | 176VAC~264VAC (Ph-N); 304VAC~456VAC (Ph-Ph) | ||||||
维护旁路 | |||||||
频率 | 50 Hz/60 Hz | ||||||
整体效率 | 电池模式 | 90% | 91% | 92% | |||
整体效率 | 线路模式 | 89% | 90% | 91% | |||
类型 | Without interruption | ||||||
电压 | 3 x 400VAC(3Ph+N) | ||||||
电池和充电器 | |||||||
充电方法 | CC/CV | ||||||
充电电压 | 432 VDC (Based on 32pcs batteries) | ||||||
额定电池电压 | 384 VDC (Based on 32pcs batteries) | ||||||
精度 | ± 1% | ||||||
电池类型和数量 | 12 VDC x 32 pcs (29~32 pcs adjustable) | ||||||
充电电流 | Default 10A, *Maximum=Capacity(KW)/Battery Voltage(real-time). | Default 10A; Maximum 40A; 5A@ full load | |||||
物理 | |||||||
尺寸,深 X 宽 X 高(mm) | 656 x 405 x 817 | 656 x 405 x 941 | 821 x 432 x 1159 | ||||
净重 (公斤) | 118 | 120 | 145 | 193 | 278 | 365 |
Model | GE SS 80K | GE SS 100K | GE SS 120K | GE SS 160K | GE SS 200K | |
容量 | 80KVA/64KW | 100 KVA / 80 KW | 120 KVA / 96 KW | 160 KVA / 128 KW | 200 KVA / 160 KW | |
输入 | ||||||
额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |||||
可接受的电压范围 | 165VAC ~ 280VAC (Ph-N); 285VAC ~ 485VAC (Ph-Ph) | |||||
频率 | 50 Hz/60 Hz ± 10% | |||||
逆变器 | ||||||
可受理 | 功率因数 | 0.6~1 (inductive or capacitive) | ||||
可受理 | 波峰因数 | 3:1 | ||||
可受理 | 超载 | 110% ~ 150% 10 min ~ 60 sec; 150% ~ 160% 60 sec~ 200ms; >160% 200ms | ||||
限流 | High overload, short-circuit: RMS Voltage Limit; High Crest-Factor current: Peak Voltage Limit | |||||
动态恢复时间 | 3 cycles at 90 % of the static value | |||||
频率 | 50/60 Hz synchronised ±1 %; With mains absent ±0.1 Hz | |||||
不平衡输出电压@ 100%不平衡负载 | <1% | |||||
最大同步速度 | ± 1Hz/s | |||||
额定电压 | 3 x 380VAC/400VAC/415VAC (3Ph+N) | |||||
相位 | 120º ±1% (balanced load); 120º ±2% (imbalances 50% of the load) | |||||
精确 | Stationary: ±1%; Transitory: ±5% (load variations 100-0-100%) | |||||
总谐波失真(THDv) | <2% (Linear Load); <5% (Non-linear Load) | |||||
波形 | Pure Sine Wave | |||||
静态旁路 | ||||||
激活标准 | Microprocessor control | |||||
允许过载 | 0% ~ 150% continuous working; 150% ~ 180% 60 min~5 min; >180% 5 min | |||||
频率 | 50 Hz/60 Hz ± 10% | |||||
再转移 | Automatic after alarm clear | |||||
转移时间 | Zero | |||||
转移到旁路 | Immediate, for overloads above 160% | |||||
类型 | Solid state | |||||
电压 | 176VAC~264VAC (Ph-N); 304VAC~456VAC (Ph-Ph) | |||||
维护旁路 | ||||||
频率 | 50 Hz/60 Hz | |||||
整体效率 | 电池模式 | 93% | ||||
整体效率 | 线路模式 | 92% | ||||
类型 | Without interruption | |||||
电压 | 3 x 400VAC(3Ph+N) | |||||
电池和充电器 | ||||||
充电方法 | CC/CV | |||||
充电电压 | 432 VDC (Based on 32pcs batteries) | |||||
额定电池电压 | 384 VDC (Based on 32pcs batteries) | |||||
精度 | ± 1% | |||||
电池类型和数量 | 12 VDC x 32 pcs (29~32 pcs adjustable) | |||||
充电电流 | Default 10A; Maximum 40A; 5A@ full load | |||||
物理 | ||||||
尺寸,深 X 宽 X 高(mm) | 975 x 554 x 1286 | 975 x 635 x 1326 | 1051x705x1646 | |||
净重 (公斤) | 471 | 573 | 650 | 760 | 790 |
